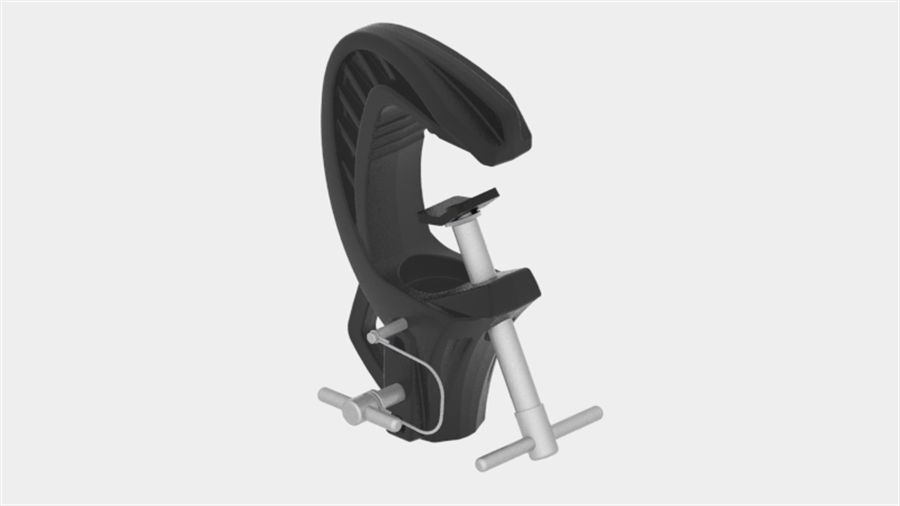

Junior pipe clamp with 28 mm socket
Clamping range encompasses pipe from 20 mm to 55 mm diameter.
| Product Code | C100 |
|---|---|
| Category | Clamps |
| Brand |
|
Junior pipe clamp with 28 mm socket
C100
 |
material | rugged gravity cast aluminium |
 |
finish | black powder smooth RAL 9005 |
 |
product weight | kg 1.13 lb 2.49 |
 |
max load | kg 250 lb 550 |
 |
volume | cu m 0.005 cu ft 0.177 |
 |
shipping weight | kg 1.18 lb 2.601 |

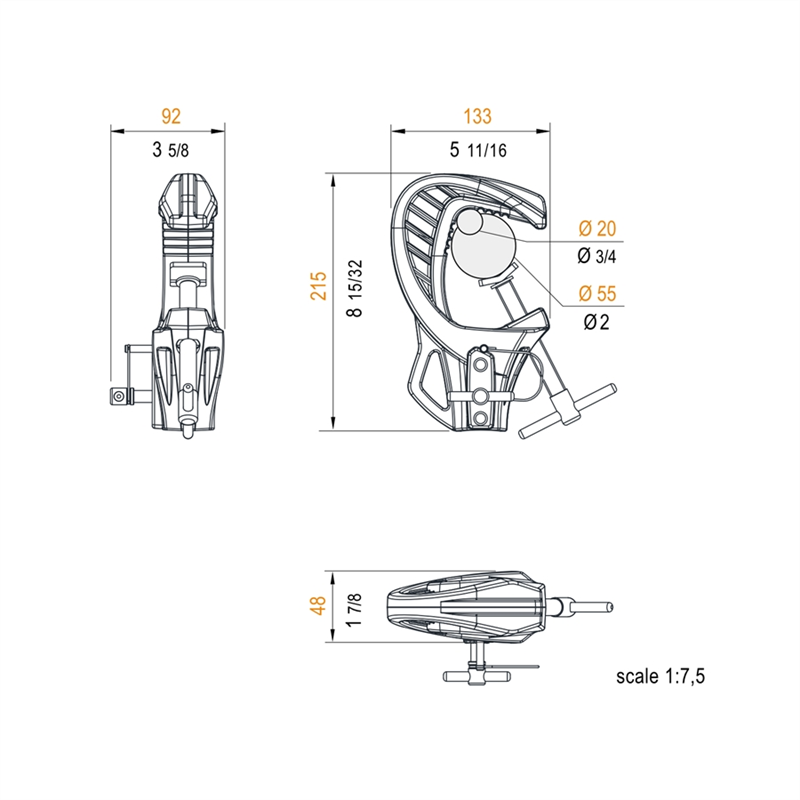

Dimensional Data
Junior pipe clamp with 28 mm socket
C100
to view in more detail download data sheet
